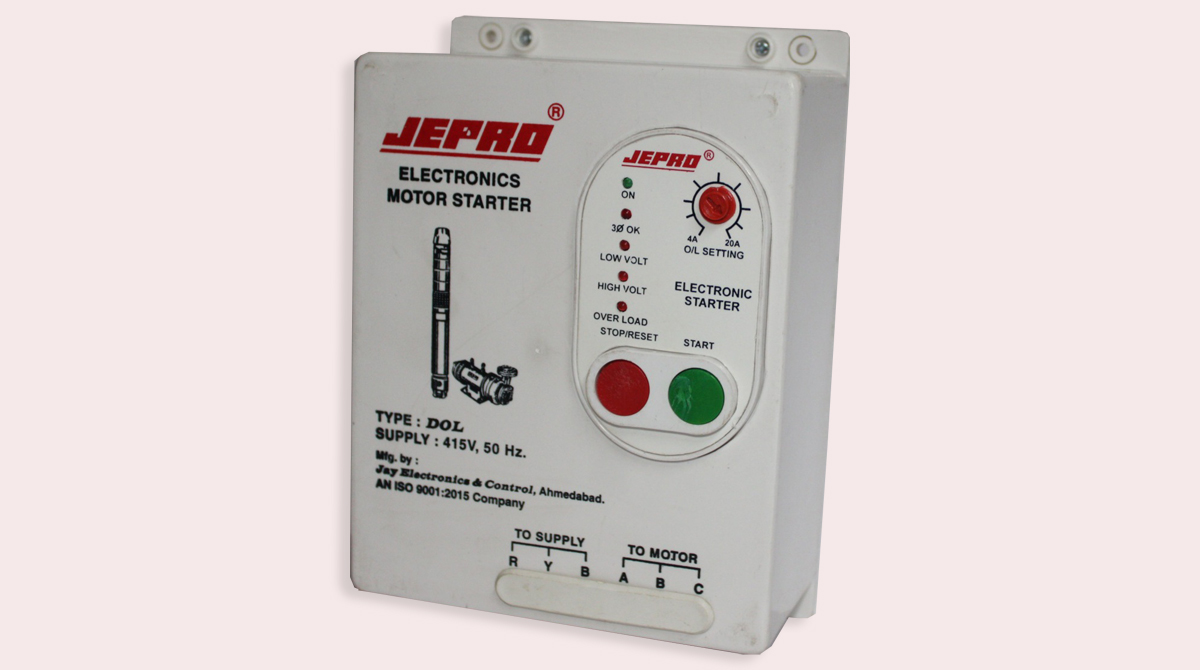

Three Phase Electronics Starter

JTC

  • Electronics Overload Protection
  • Reverse Phasing Protection
  • Phase failure Protection
  • Voltage Unbalance Protection
  • High/Low voltage Protection
  • Available in Variable Current Range
  • 3 Phase OK LED provided
  • Easy to set O/L current by adjustable knob
  • Used Upto 7.5 HP DOL Motor/Pump
  • White ABS Enclosure
  • LED indication
System Voltage 415 VAC ± 20%, 50HZ
Current Range 2-20Amp, 1-10Amp, 10-30Amp
Under Voltage 250V Cut Off – 270V Cut In
Over Voltage 500V Cut Off – 480V Cut In
Switching Device Power Relay
On-Off/Reset By Manual Push Button
Indication Motor On, H/V, L/V, O/L, 3Ø OK
  • Atta Maker/ Pulverizer
  • Air Compressor
  • Induction Electric Motor
  • Pressure Pump
  • Submersible Pump
  • Dairy Equipments
images
Three Phase Electronics Starter

JTC-A

  • Electronics Overload Protection
  • Reverse Phasing Protection
  • Phase failure Protection
  • Voltage Unbalance Protection
  • High/Low voltage Protection
  • Available in Variable Current Range
  • Correct Phase Sequence LED provided
  • Easy to set O/L current by adjustable knob
  • Used Upto 7.5 HP DOL Motor/Pump
  • White ABS Enclosure
  • LED indication
  • Auto/Manual System
System Voltage 415 VAC ± 20%, 50HZ
Operating Voltage 250V to 500V
Current Range 2-20Amp, 1-10Amp, 10-30Amp
Unbalance trip setting 45V ± 5V
ON Time Delay 1 Min
Under Voltage 250V Cut Off – 270V Cut In
Over Voltage 500V Cut Off – 480V Cut In
Switching Device Power Relay
On-Off/Reset By Manual Push Button
Indication Motor On, H/V, L/V, O/L, 3Ø OK
  • Atta Maker/ Pulverizer
  • Air Compressor
  • Induction Electric Motor
  • Pressure Pump
  • Submersible Pump
  • Dairy Equipments
images

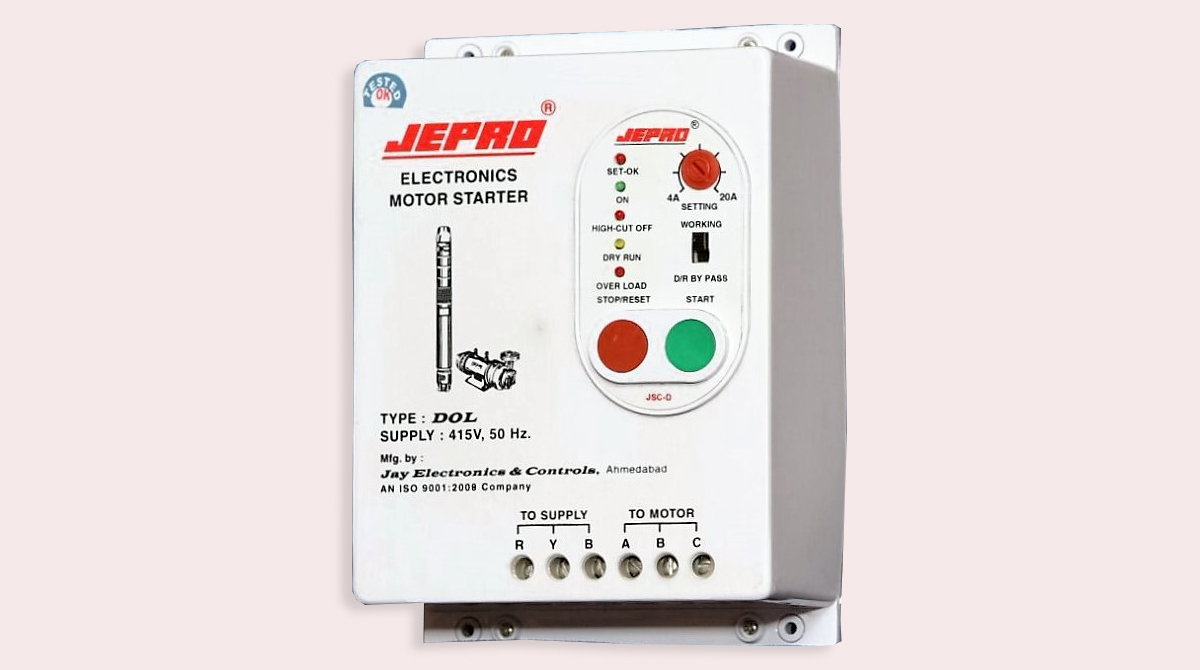

Three Phase Electronics Starter

JTC-D

  • Electronics Overload Protection
  • Reverse Phasing Protection
  • Phase failure Protection
  • Voltage Unbalance Protection
  • Dry Run Protection
  • High voltage Protection
  • Low Voltage Protection
  • Available in Variable Current Range
  • Correct Phase Sequence LED provided
  • Easy to set O/L current by adjustable knob and set ok LED
  • Used Upto 7.5 HP DOL Motor/Pump
  • White ABS Enclosure
  • LED indication
System Voltage 415 VAC ± 20%, 50HZ
Current Range 2-20Amp, 1-10Amp, 10-30Amp
Dry run Bypass System YES
Under Voltage 250V Cut Off – 270V Cut In
Over Voltage 500V Cut Off – 480V Cut In
Unbalance Trip Setting 45V ± 5V
Switching Device Power Relay
On-Off/Reset By Manual Push Button
Indication Motor On, H/V, O/L, SET OK, D/R
  • Induction Electric Motor
  • Pressure Pump
  • Submersible Pump
images

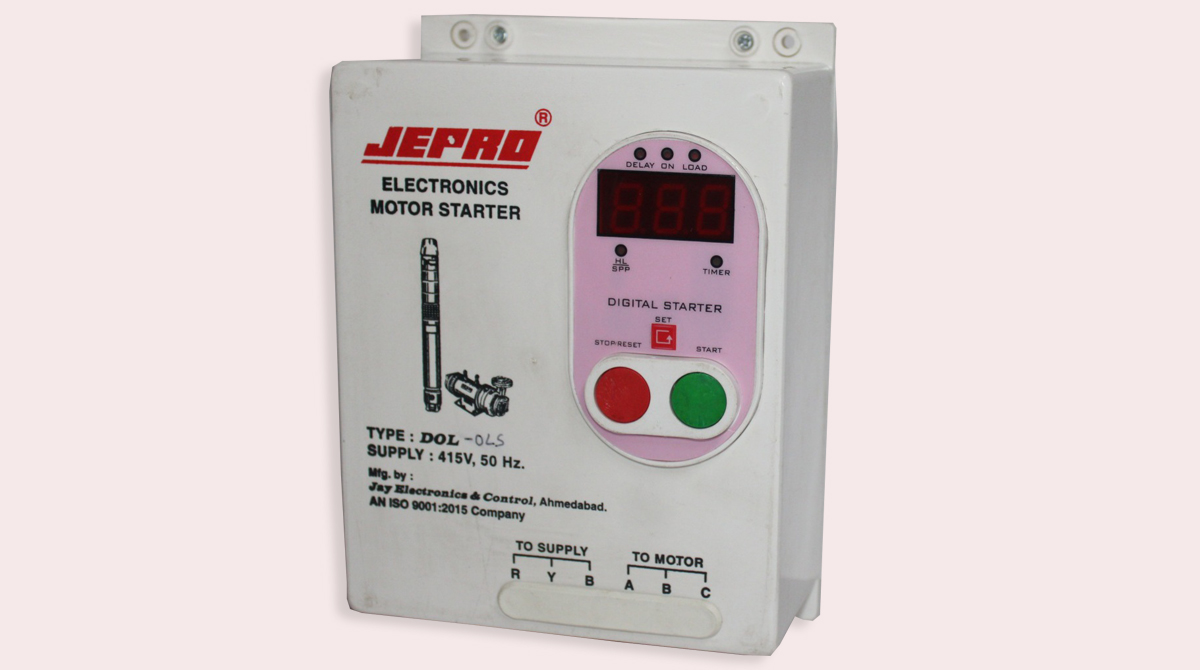

Three Phase Electronics Starter

JTC-DG-OLS

  • Microcontroller Based Technology
  • Digital Volt/Amp Meter
  • Electronics Overload Protection
  • Reverse Phasing Protection
  • Phase failure Protection
  • Voltage Unbalance Protection
  • High/Low voltage Protection
  • Available in Variable Current Range
  • Easy to set O/L current by Set key
  • Used Upto 7.5 HP DOL Motor/Pump
  • White ABS Enclosure
  • LED indication
  • Auto/Manual System
System Voltage 415 VAC ± 20%, 50HZ
Current Range 2-20Amp
ON Time Delay 1 Min
Under Voltage 250V Cut Off – 270V Cut In
Over Voltage 500V Cut Off – 480V Cut In
Unbalance Trip Setting 45V ± 5V
Switching Device Power Relay
On-Off/Reset By Manual Push Button
Indication Motor On, SPP, H/V, L/V, O/L, Delay
  • Atta Maker/ Pulverizer
  • Air Compressor
  • Induction Electric Motor
  • Pressure Pump
  • Submersible Pump
  • Dairy Equipments
images

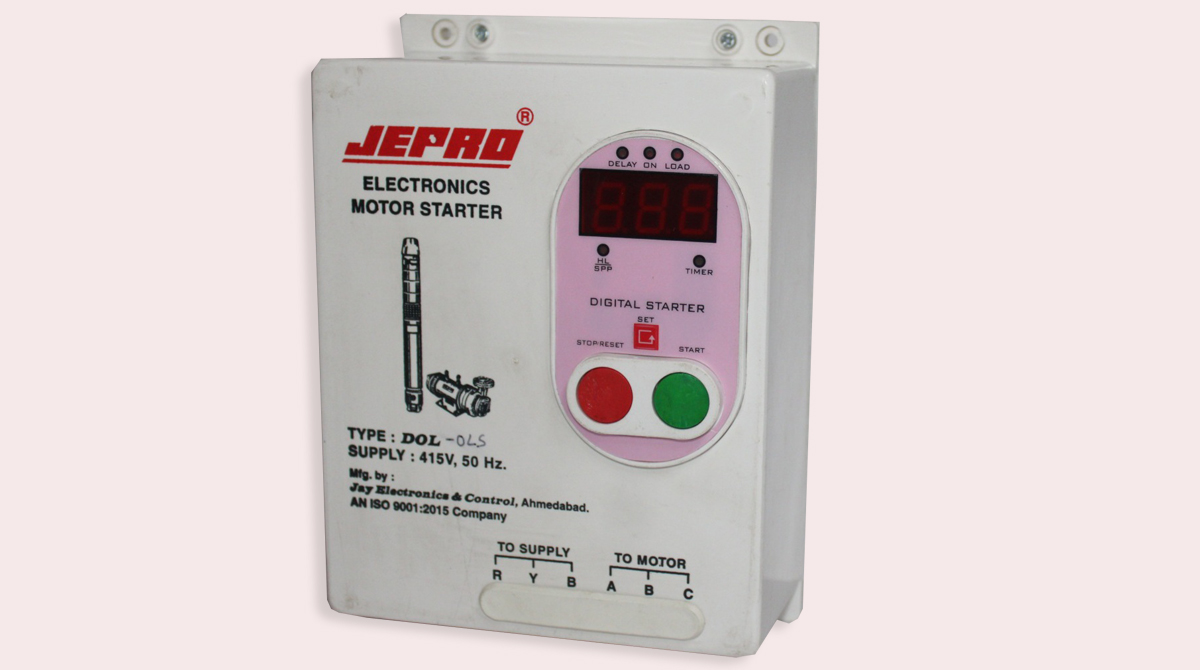

Three Phase Electronics Starter

JTC-DG-DLS

  • Microcontroller Based Technology
  • Digital Volt/Amp Meter
  • Electronics Overload Protection
  • Dry run Protection
  • Reverse Phasing Protection
  • Phase failure Protection
  • Voltage Unbalance Protection
  • High voltage Protection
  • Low Voltage Protection
  • Available in Variable Current Range
  • Easy to set O/L current by Set key
  • Used Upto 7.5 HP DOL Motor/Pump
  • White ABS Enclosure
  • LED indication
  • Auto/Manual System
System Voltage 415 VAC ± 20%, 50HZ
Current Range 2-20Amp
ON Time Delay 1 Min
Under Voltage 250V Cut Off – 270V Cut In
Over Voltage 500V Cut Off – 480V Cut In
Unbalance Trip Setting 45V ± 5V
Switching Device Power Relay
On-Off/Reset By Manual Push Button
Indication Motor On, SPP, H/V, L/V, O/L, Delay
  • Induction Electric Motor
  • Pressure Pump
  • Submersible Pump
