TABLE MOUNTING STABILIZER

images

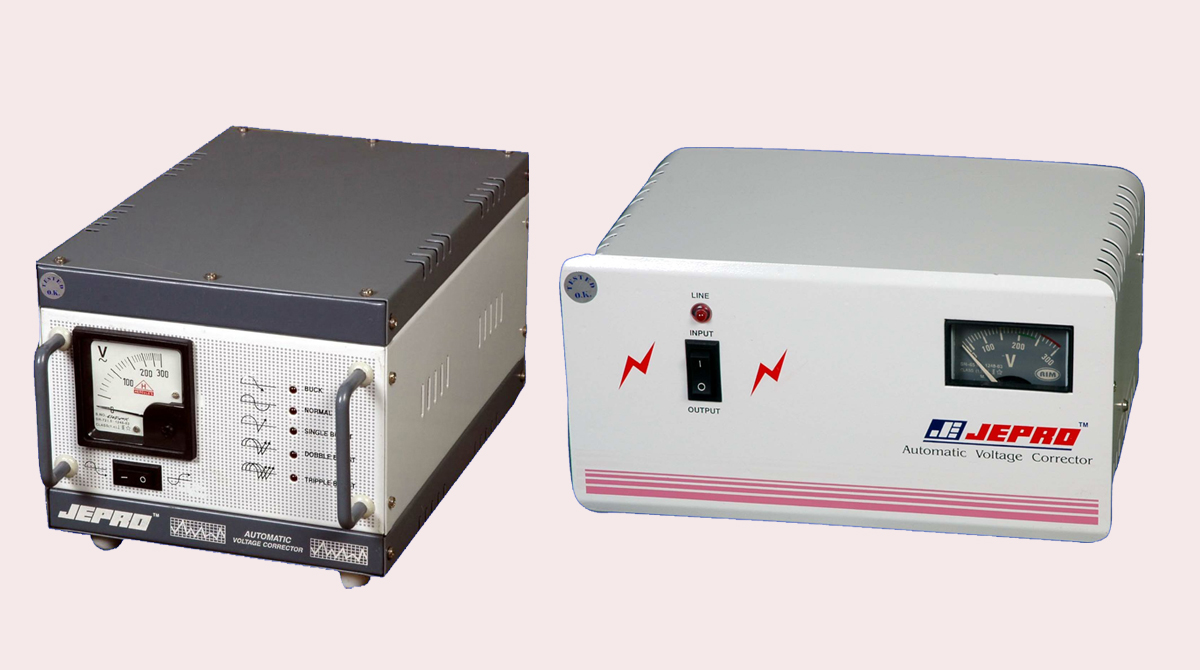

TABLE MOUNTING STABILIZER

JDM

  • Protect equipments against Fluctuated Voltage
  • It gives accurate power supply
  • Table Mounting Design
  • High & Low Voltage Cut off Protection
  • Available in Single Phase
  • White Metal Enclosure
  • LED indication
  • Provide Analog voltage indicator
  • Available from 0.5 KVA to 10KVA range
Input Voltage 170VAC - 270VAC, 140VAC – 280VAC
Output Voltage 220VAC ± 10%, 50HZ
Power Rating Upto 10KVA
Indication Line voltage
  • Protect All type of Single Phase Equipments such as TV, Refrigerator, Deep freezer, Computer etc.

SERVO CONTROLLED VOLTAGE STABILIZER

images

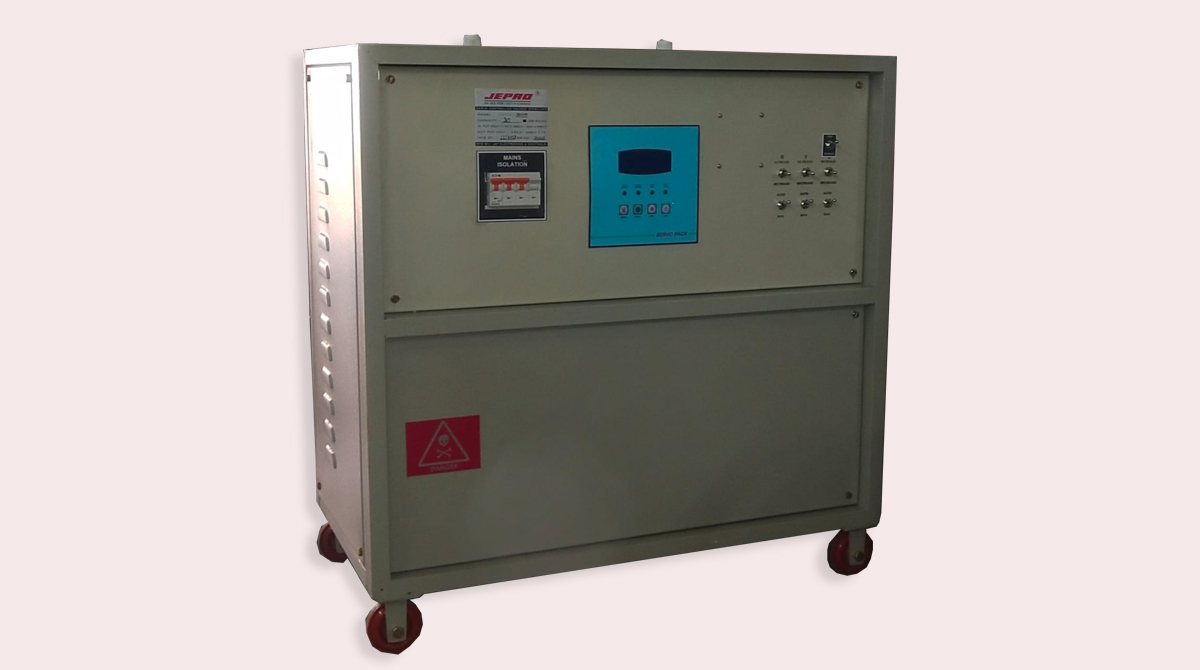

THREE PHASE SERVO STABILIZER

DIGITAL THREE PHASE SERVO STABILIZER (SCVS-DG)

  • Protect equipments against Fluctuated Voltage
  • Provide accurate power supply
  • 95% to 98% efficiency at full load
  • High & Low Voltage Cut off Protection
  • Volt selector Switch for I/P or O/P selection for indication on Digital display
  • Stabilizer on Push button switch for easy start of Stabilizer Output
  • Provide Bypass Switch facility
  • Reverse Phasing and Phase Failure Protection
  • Short circuit and Overload Protection
  • Upto 500KVA in 3 Phase and 20KVA in 1 Phase
  • Metal Enclosure
  • LED indication
  • Digital Display Indication
Input voltage range 3-phase 360-460, 340-480, 300-500
Input voltage range 1-phase 160-270, 180-280, 130-260
Output voltage range 3-phase 415, 400, 380
Output voltage range 1-phase 240, 230, 220
System construction Unbalanced Type
Output voltage Accuracy ± 1%
Overload capacity 120%
Bypass Switch This switch enable to by-pass the servo stabilizer in case of the failure of the servo stabilizer. The equipment connected through the stabilizer will get the supply form mains directly once the stabilizer is by-passed
Wave form distortion Nil
Output wave form True reproduction of input
Cooling Natural air-cooled up to 125 kva
Modes of system Both auto or manual
System construction As per IS 9815-1994
  • CNC Machines, Biomedical Equipments, Textile Machinery, Pharma Machinery

WALL MOUNTING STABILIZER FOR AC

images

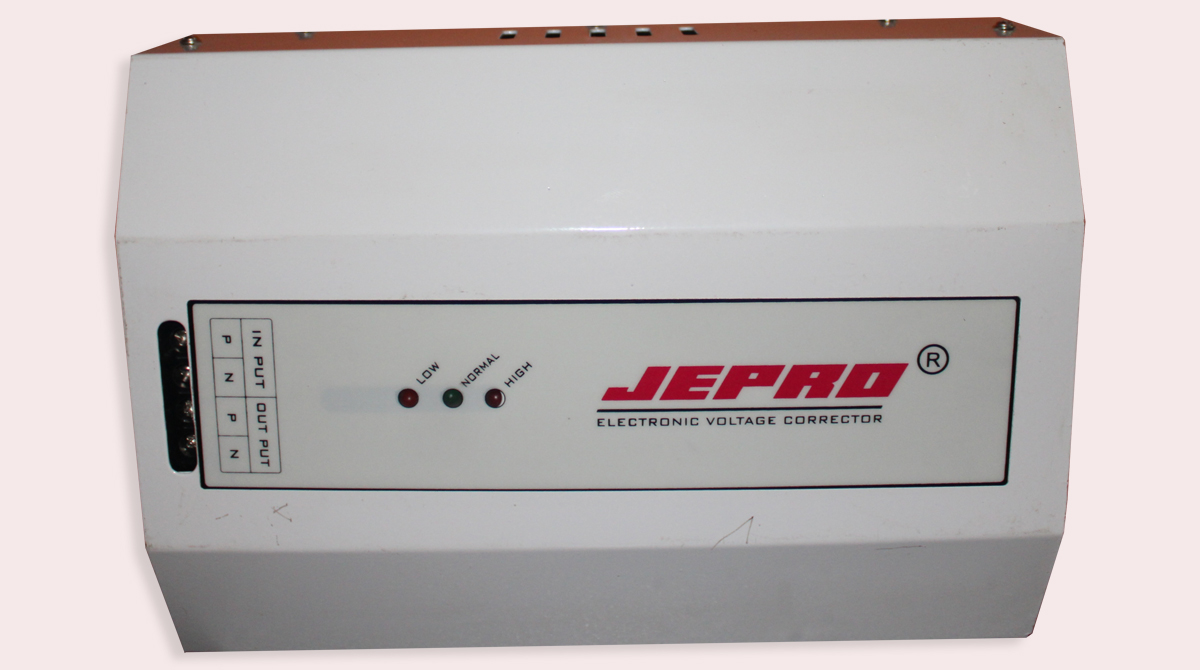

WALL MOUNTING STABILIZER FOR AC

JDWT

  • Suitable for Air conditioner upto 1.5 Ton
  • Wall Mounting Cabinet Design
  • High & Low Voltage Cut off Protection
  • Available in Single Phase
  • White Metal Enclosure
  • LED indication
  • Also available 5KVA for 2 Ton AC (Optional)
Input Voltage 170VAC - 270VAC, 140VAC – 280VAC, 120VAC – 300VAC
Output Voltage 220VAC ± 10%, 50HZ
Power Rating 4KVA
Load Capacity 12Amp
Usage 1.5 Ton AC
Indication HV, LV, Normal
  • Single Phase Inverter/Normal AC
images

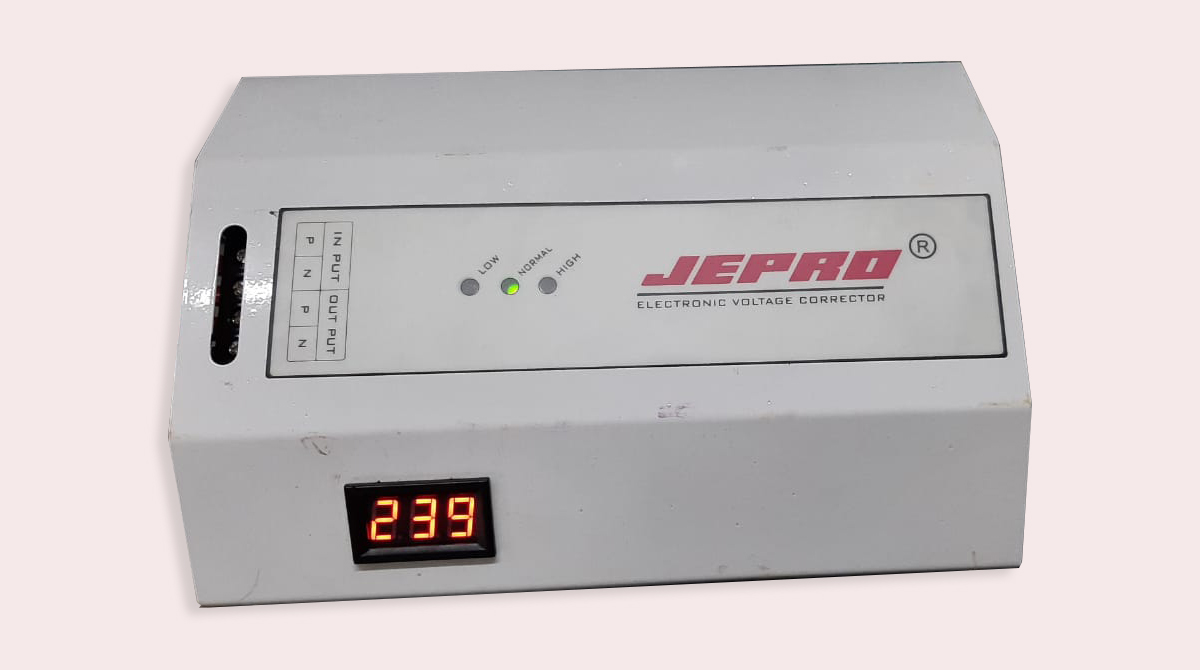

WALL MOUNTING STABILIZER FOR AC

JDWT-DG

  • Suitable for Air conditioner upto 1.5 Ton
  • Wall Mounting Cabinet Design
  • High & Low Voltage Cut off Protection
  • Available in Single Phase
  • White Metal Enclosure
  • LED indication
  • Digital Display for Output Voltage
  • Also Available 5KVA for 2Ton AC (optional)
Input Voltage 170VAC - 270VAC, 140VAC – 280VAC, 120VAC – 300VAC
Output Voltage 220VAC ± 10%, 50HZ
Power Rating 4KVA
Load Capacity 12Amp
Usage 1.5 Ton AC
Indication HV, LV, Normal
Display Digital (7 segment)
  • Single Phase Inverter/Normal AC
