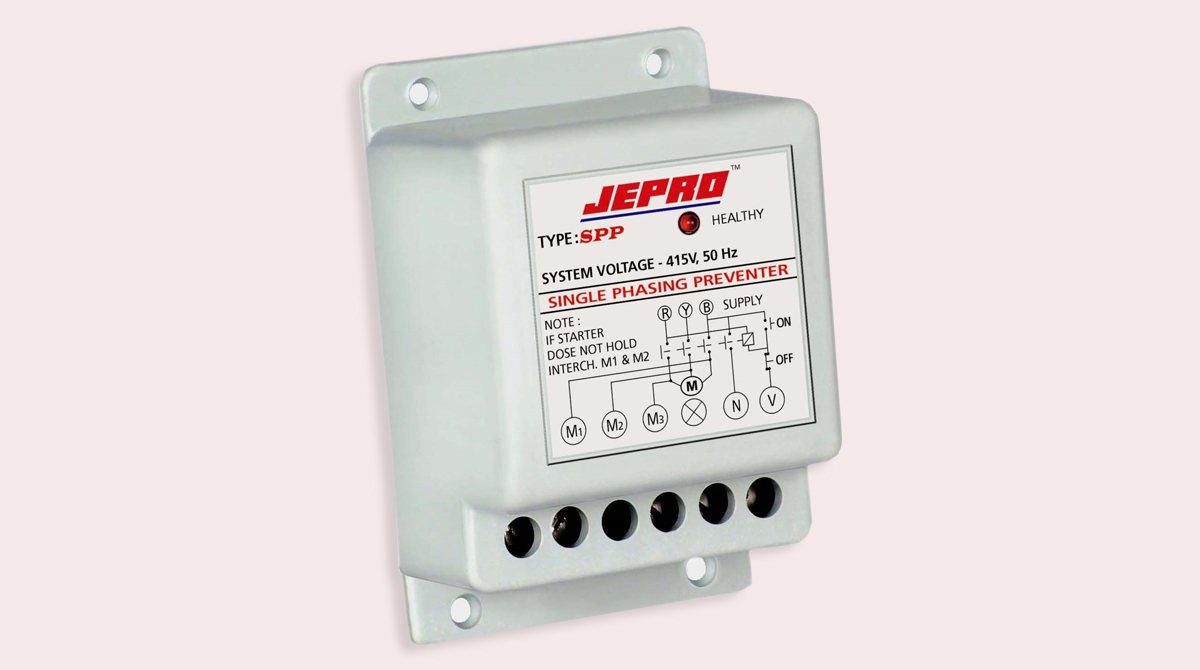

Single Phasing Preventer
SPP
- Phase Failure Protection
- Reverse Phasing Protection
- Voltage Unbalance Protection
- LED indications
- Base Mounting
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Output Relay contact | 1C/O |
| Output contact rating | 6Amp, 240 VAC (resistive) |
| Unbalanced Trip setting | 45V ± 5V |
| Tripping Time | 2 sec |
| Reset | Auto |
| Enclosure | ABS Material |
- Compressor Motors
- Cold Storage
- Genset Panel
- Elevator Panel
- Agriculture submersible Starter
- Machine tools

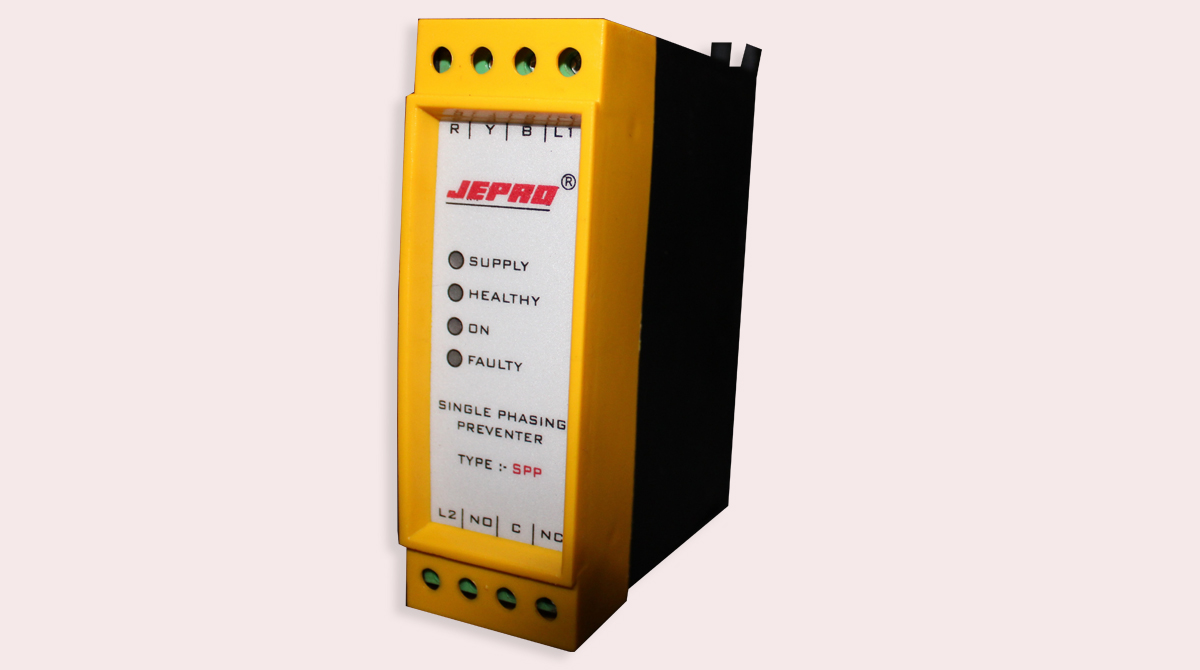

Single Phasing Preventer
SPP-Din Rail
- Phase Failure Protection
- Reverse Phasing Protection
- Voltage Unbalance Protection
- LED indications
- Din Rail Mounting
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Output Relay contact | 1C/O |
| Output contact rating | 6Amp, 240 VAC (resistive) |
| Unbalanced Trip setting | 45V ± 5V |
| Tripping Time | 2 sec |
| Reset | Auto |
| Enclosure | ABS Material |
- Compressor Motors
- Cold Storage
- Genset Panel
- Elevator Panel
- Agriculture submersible Starter
- Machine tools

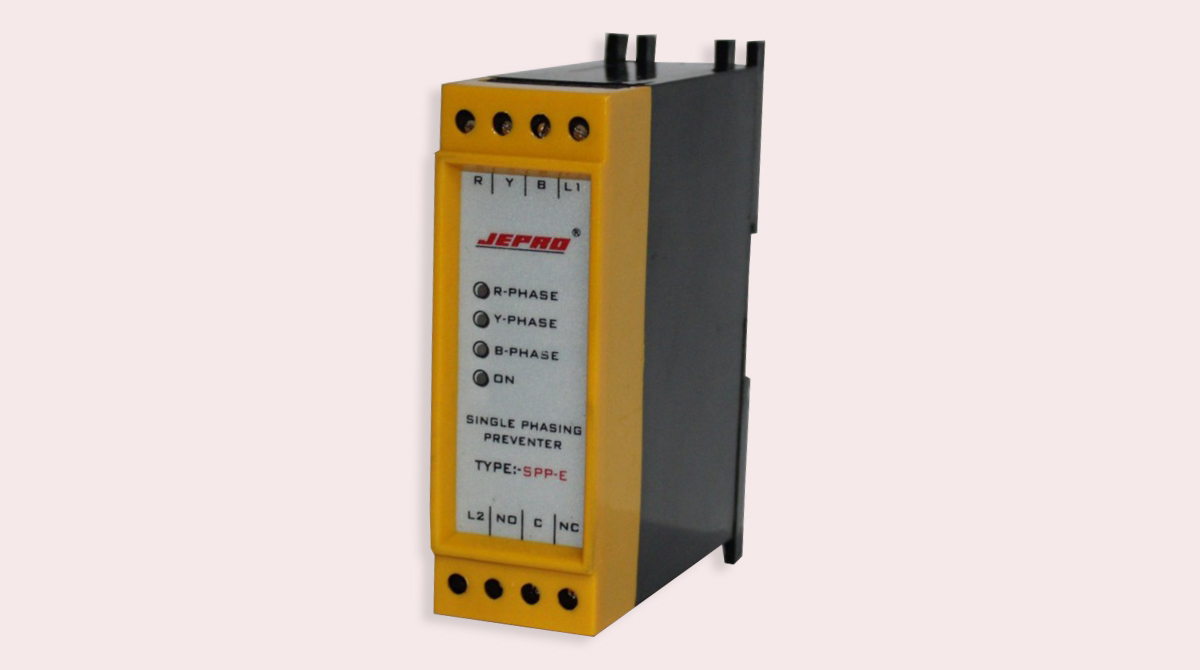

Single Phasing Preventer
SPP-E
- Specially for Elevator Application
- Phase Failure Protection
- Voltage Unbalance Protection
- Each Phase of LED indications
- Din Rail Mounting
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Output Relay contact | 1C/O |
| Output contact rating | 6Amp, 240 VAC (resistive) |
| Unbalanced Trip setting | 45V ± 5V |
| Tripping Time | 2 sec |
| Reset | Auto |
| Enclosure | ABS Material |
- Elevator Panel
- Compressor Motors
- Cold Storage
- Genset Panel
- Agriculture submersible Starter
- Machine tools
